QuadEGT Module & Probe Kit

The Quad EGT CAN Module is a high-precision, 4-channel thermocouple interface designed to give you professional-grade exhaust gas temperature data for each cylinder. Compatible with MegaSquirt ECUs and other systems via configurable CAN IDs, it’s perfect for tuning, diagnostics, and performance monitoring.

Key Features

• 4x K-Type Thermocouple Inputs
  • Supports common miniature thermocouple sockets for flexible installation
• Rugged Design - sealed metal enclosure suitable for underhood installation
• Cold Junction Compensated - designed for high accuracy
• Selectable CanBus Termination Resistor - simple dip switch to enable/disable

Specifications

• Temperature Range: 0 to 1250°C (32 to 2282°F)
• 16-bit Hardware
• Open Circuit & Fault Detection
• 20ms Broadcast Rate

CAN Communication

• AMP EFI & MegaSquirt
  • Compatibility
    • MS3Pro
    • MSPNP-Pro
    • MS3X
    • MS3
  • Plug-and-Play using CANEGT broadcast
• Other ECUs: Supports 8 configurable CAN bus IDs for wide compatibility

MS3 Safety Features

• Configurable Over-Temp Warnings
• AFR Compensation: Add fuel per cylinder based on EGT
• Safe Engine Shutdown: Prevent catastrophic failures

Included in the Box

• Kit Options:
  • 4 Cylinder

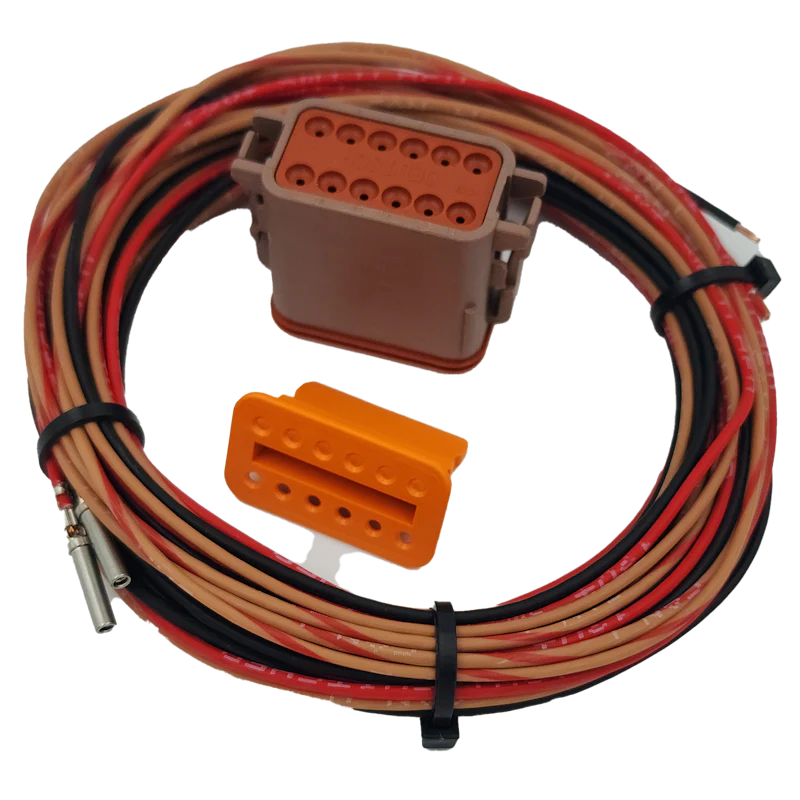

    • (1) Quad EGT CAN Module with Harness

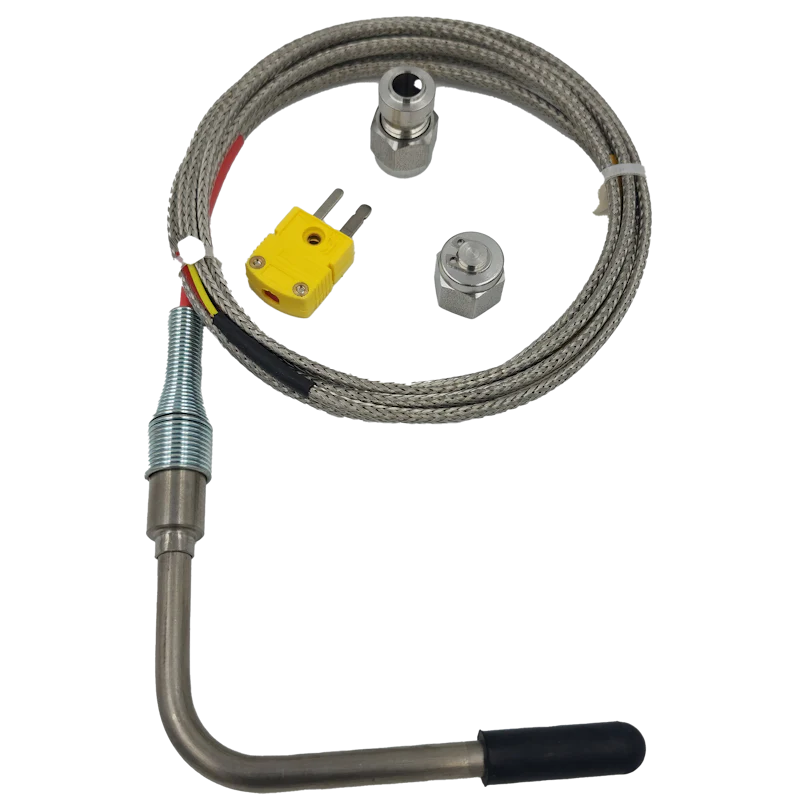

    • (4) 1/4″ Open Tip Probe EGT Kits
      • EGT Probes
      • EGT Weld Bungs

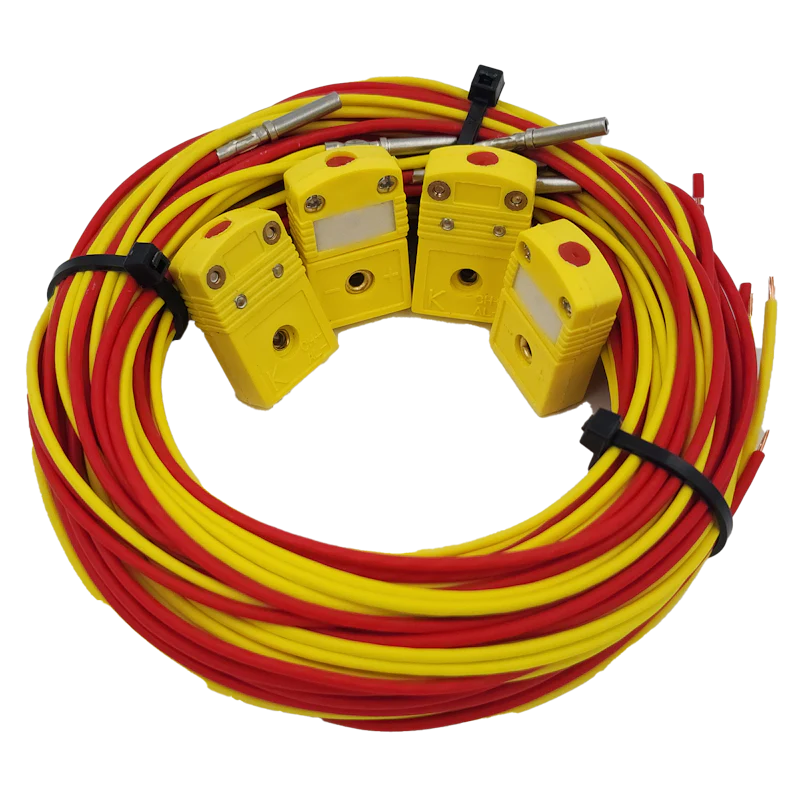

      • EGT K-Type Mini Plugs
      • EGT Caps
  • 6 Cylinder
    • (2) Quad EGT CAN Modules with Harnesses
    • (6) 1/4″ Open Tip Probe EGT Kits
      • EGT Probes
      • EGT Weld Bungs
      • EGT K-Type Mini Plugs
      • EGT Caps
  • 8 Cylinder
    • (2) Quad EGT CAN Modules with Harnesses
    • (8) 1/4″ Open Tip Probe EGT Kits
      • EGT Probes
      • EGT Weld Bungs
      • EGT K-Type Mini Plugs
      • EGT Caps
